H-20 Traffic Style Fiberglass Manholes | Open Channel Flow
Skip to main content
image for Street Reducer

Street Reducer

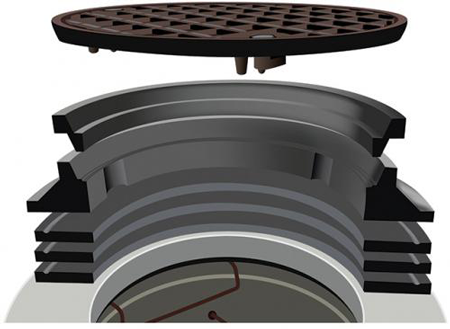

Hamilton Kent - grade rings - frame - cover over manhole subject to vehicle traffic

H-20 Reducer Top manholes are specially designed for installation in areas where vehicular traffic may be present.  Utilizing a specially designed reducer, H-20 Highway Loading manholes use standard grade rings, frames, and covers.

Suitable Locations

H-20 Highway Loading manholes are for use in areas where vehicular traffic may be present (roads, parking lots, loading dock areas) or where a low profile installation is required.

Availability

4', 5', and 6' [1.22, 1.52, and 1.80 m] diameter manholes.

Sizing Traffic Reducer Top Manholes

H-20 Highway Loading manholes are sized to be 12-inches [30.48 cm] below the finish grade.  This allows standard grade rings / frames / covers to bring the installation up to grade.

Should a manhole be incorrectly and the Top be too far below grade, Openchannelflow offers manhole extensions to help bring the top back up to its desired height.



Image:  Hamilton Kent
