0.5-Foot H Flume Discharge Dropbox Detail

> Gallery
0.5-Foot H Flume Discharge Dropbox Detail

0.5-Foot H Flume Discharge Dropbox Detail

Description

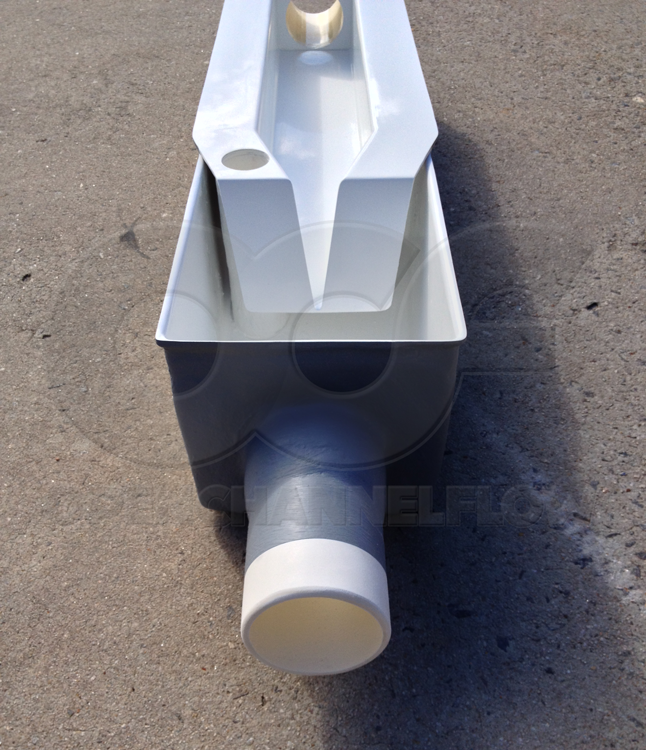

Detail of the discharge dropbox on a 0.5-foot H flume.  Flow spills off the end of the flume and then down into the dropbox.

The flume has a 2-inch probe well molded-into the right side of the flume at the point of measurement.  The location of accessories is determined looking down the flume in the direction of flow.
