Dischage Structure on 0.5-Foot H Flume

> Gallery
Dischage Structure on 0.5-Foot H Flume

Dischage Structure on 0.5-Foot H Flume

Description

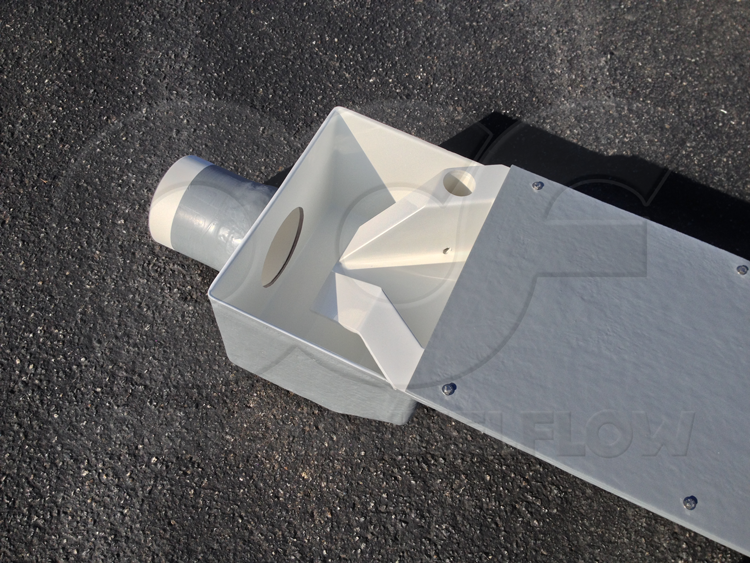

A discharge dropbox structure on the outlet of a 0.5-foot H flume.  Flow spilling off the end of the flume is collected in the dropbox and then out the discharge pipe stub.

Dropboxes are available for all HS and most H flumes from Openchannelflow.
