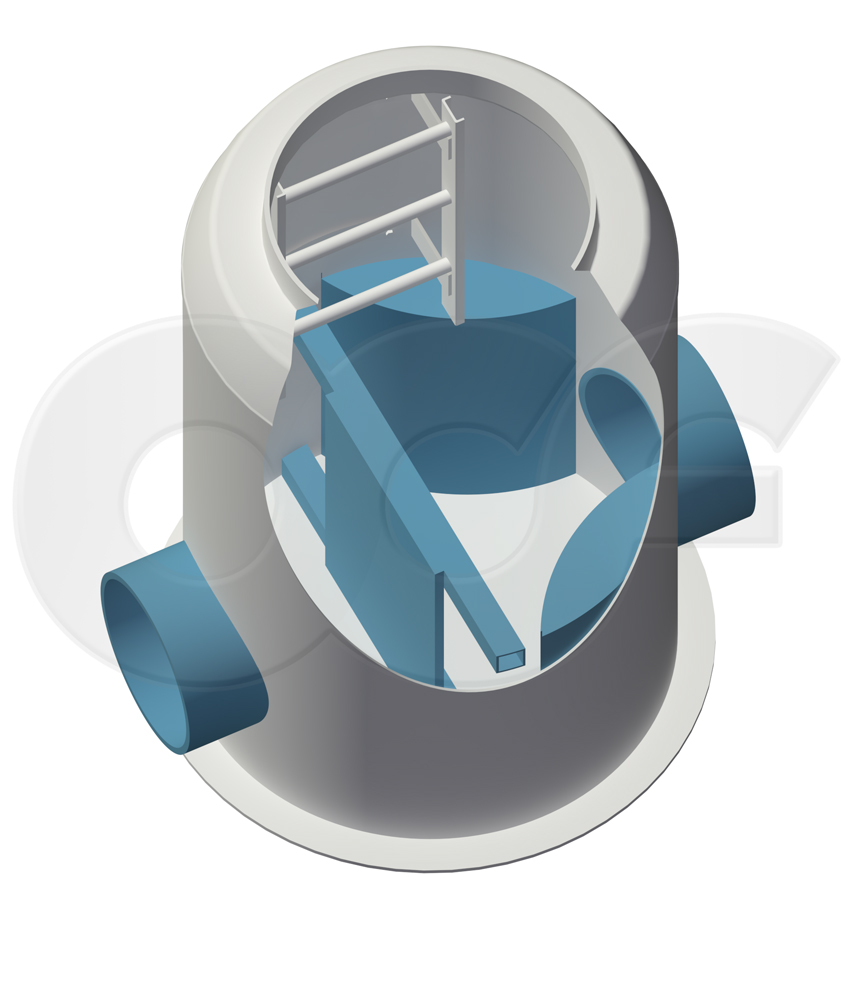

Energy Absorbing Manhole - 3D Computer Render

Energy Absorbing Manhole - Render

Description

A 3D render of a fiberglass Energy Absorbing Manhole. Flow enters the manhole from the left, hits the energy absorbing baffle, is slowed and then flows around the baffle.  The slowed flow is directed out of the manhole via two curved sidewall cheeks.At the top of the manhole is a reducer allowing the manhole to be installed in areas where vehicular traffic may be present.
