H Flume with Approach and Wing Walls

> Gallery

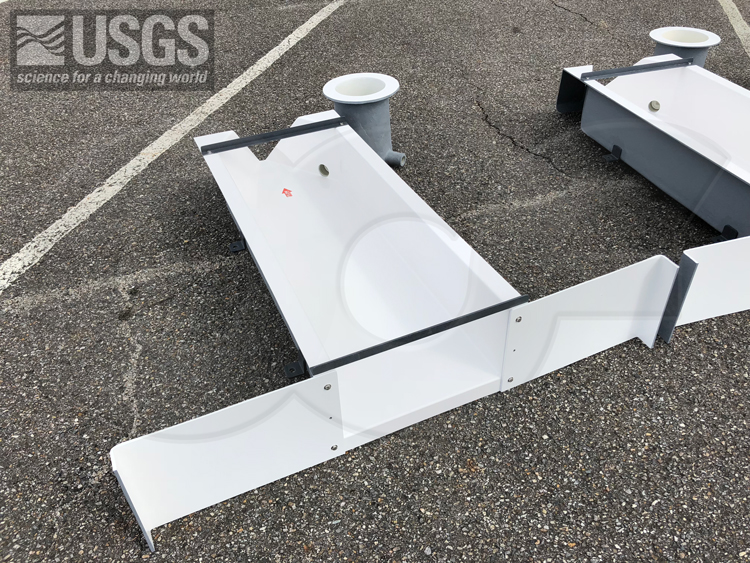

Fiberglass H Flume with Approach Section - Wing Walls - Detached Stilling Well

H Flume with Approach and Wing Walls

Description

A 0.75-foot H flume - one of (8) - for the USGS Ohio Water Science Center.  The flume has an approach section, bolt-on inlet wing walls, and a detached stilling well.

This flume - along with the other (10) on the order - is destined for use as part of an edge-of-field study.
