Parshall Flume Measuring Mine Treatment Flows

> Gallery
Parshall Flume Measuring Mine Treatment Flows

Parshall Flume Measuring Mine Treatment Flows

Description

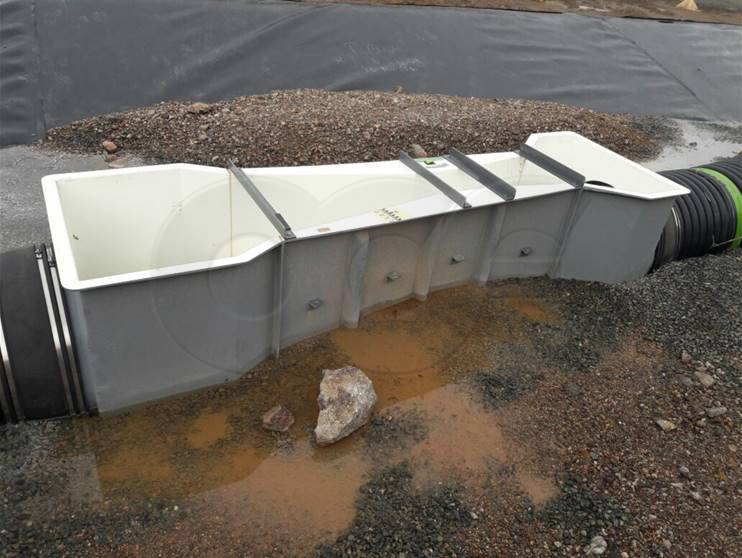

A 24-inch Parshall flume used to measure treated water at the La Trinidad Mine, located in Matazlán, Sinaloa, Mexico.  The flume was provided with end connections to allow it to be installed inline with the above ground piping.  Reinforcing ribing molded-into the flume allows the installation to be free-standing.
