Plan View of 18-inch Parshall Flume with Inlet Wing Walls

> Gallery
parshall flume fiberglass construciton inlet wing walls

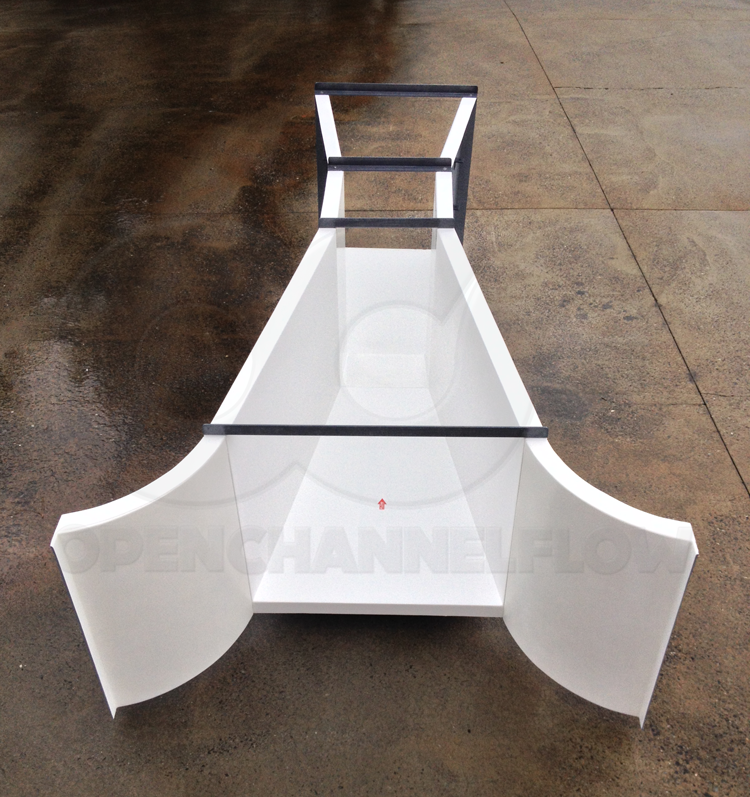

Plan View of 18-inch Parshall Flume with Inlet Wing Walls

Description

Plan view of a fiberglass 18-inch Parshall flume with radius inlet wing walls. Research has shown that radius wing walls diminished (or eliminates) the formation of the wave-trough phenonema some times seen with flat 45 degree wing walls.
