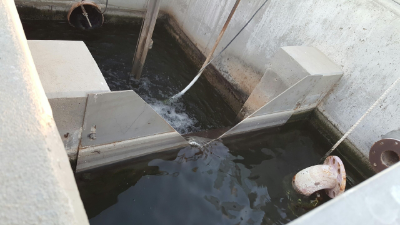

What is a V-Notch Weir?

• A plate across a channel that is thin, in relation to the channel width, and into which a V-shaped notch has been cut.
• Flow goes over the notch (versus through a flume).
• The notched plate is set perpendicular to the direct of the flow of water and results in a pool of water upstream.
• This pool of water helps to dissipate turbulence and normalize the approaching velocity.
• The water level upstream of the V-notch is a direct function of the flow rate over the weir plate and is measured from the upstream surface of the water to the elevation of the lowest portion of the V-notch (also known as the crest).
